Pool
Heaters - SS-Series
The SS-Series pool heaters provide a simple method of heating swimming pool water indirectly from a central heating boiler. To select the right model for your pool see our Quick Sizing Reference Table. Click here for Dimensions.
Features of the SS-Series Pool Heater:
- All SS-Series pool heaters are manufactured entirely of Stainless Steel 316L to ensure corrosion resistance to chlorinated pool and spa water and longer equipment life.
- Due to the high flow rates through the heat exchangers, it inherently is a self cleaning equipment.
- With the high flow rate of the pool water going through the shell and boiler water through the tubes, low pressure drop is achievable.
- Easy selection based on pool volume - please see quick select guide below
- Units kept in stock for immediate delivery.
| Pool Size (gallons) | 1F/hr Heat up Btu/hr | Model | 2F/hr Heat up Btu/hr | Model |
| 6000 | 50,000 | SS80 | 100,000 | SS160 |
| 12000 | 100,000 | SS160 | 200,000 | SS240 |
| 18000 | 150,000 | SS160 | 300,000 | SS350 |
| 28000 | 234,000 | SS240 | 468,000 | SS650 |
| 36000 | 300,000 | SS350 | 600,000 | SS650 |
| 46000 | 300,000 | SS350 | 600,000 | SS1200 |

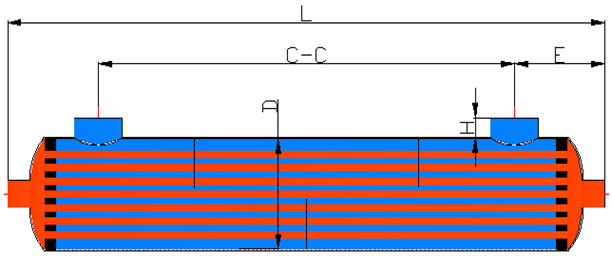

*The dimensions of the heat exchanger are listed in the table below.
| Rating | Design Pressure | Design Temperature | Material | |
| Shell Side | 150 psi | 230 F | Tubing | SS316L |
| Tube Side | 150 psi | 250 F | Shell | SS316L |
| Dimensions (inches) | Connection FNPT |
|||||||
| Model | BTU Capacity | L | D | C-C | F | H | Tubesie | Shellside |
| (Btu/hr) | (Btu/hr) | inch | inch | inch | inch | inch | in | in |
| SS80 | 80,000 | 15.75 | 3.50 | 7.70 | 4.05 | 0.50 | 3/4 | 1.5 |
| SS160 | 160,000 | 18.75 | 3.50 | 10.70 | 4.05 | 0.50 | 3/4 | 1.5 |
| SS240 | 240,000 | 20.00 | 4.25 | 11.25 | 4.30 | 0.43 | 1 | 2 |
| SS350 | 350,000 | 25.75 | 4.25 | 17.25 | 4.30 | 0.43 | 1 | 2 |
| SS650 | 650,000 | 41.75 | 4.25 | 33.25 | 4.30 | 0.43 | 1.5 | 2 |
| SS1200 | 1,200,000 | 36.25 | 5.25 | 27.00 | 4.60 | 0.51 | 2 | 2 |
Please note that all pool heaters are available for immediate delivery.
Do you still have questions? We invite you to call or email us today for more information. We'll be happy to provide you with a heat exchanger that matches your specific needs.
