Sidearm Heat Exchangers

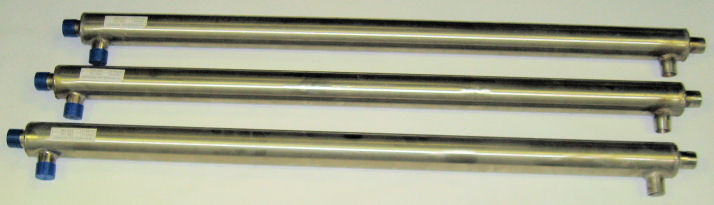

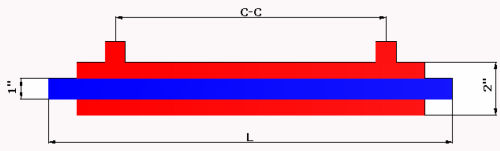

The Sidearm Heat Exchanger is designed using the natural thermo-siphon concept on the domestic hot water side. Traditional sidearms are made of two bare copper tubes. Their capacity is determined by the length of sidearm-tubes and the heat transfer efficiency is very low. Our fin-enhanced sidearms are made of stainless steel and have a high heat transfer efficiency resulting from the utilization of an internal finned tube. The fin tubbed design provides a surface area five to eight times bigger than the bare tube design and produces significant turbulence on the system side. The fin-enhanced sidearm provides a larger capacity and faster heating using a shorter unit. Fin-enhanced sidearms are available upon request.. Download the Sidearm Heat Exchanger Brochure.

Double Wall Sidearm Heat Exchangers

Due to concerns about cross contamination of potable water several US States enacted regulations to prevent this possibility from occurring. Double wall heat exchangers presented the most effective means of protection from cross contamination. We now provide a vented double walled sidearm which meets the criteria of these regulations.

Applications of the Sidearm Heat Exchanger

Due to the compact size and lightweight of the Sidearm heat exchanger these units are ideal for residential heating and plumbing applications. Also called domestic water heat exchangers, they are typically used to heat domestic water using either a conventional boiler, outdoor wood furnace or a solar hot water system. Typically the domestic water is circulated by means of the thermosiphon principle which saves on the cost of a pump and the associated electrical costs. In cases where faster heat recovery is required the domestic hot water should be circulated by means of a pump. Pump circulation will typically provide a heat recovery 3 to 4 times greater than thermosiphoning.

Please note that all our heat exchangers are available for immediate delivery.

Do you still have questions? We invite you to call or email us today for more information. We'll be happy to provide you with a heat exchanger that matches your specific needs.
